AC Output
Rated Power Output: 6 kVA / 5 kW
Output Voltage: 230 VAC/50Hz
Max. Output Current: 25.8A
Max. Bypass Input Power: 6kW
AC Input
AC Input Voltage: 230VAC/50Hz
Surge Protection: 3 kVA/5 kVA, 8/20 s
Max. Input Current: 30 A
PV Input
Start-up Voltage: 100VDC
MPPT Voltage: 90-420VDC
Max. Input Voltage (Voc): 435VDC
Max. Input Current (Isc): 2 x 15 A
Recommended PV Power: 5000 Wp
No. PV Strings/MPPT Routes: 2/1
Optimizer Compatibility: DC Mbus Compatible
DC Surge Protection: 10 kA, 8/20 s, criterion C
Max. Input Current per Strings: 15 A
General
Communication: Wi-Fi
Display: LED’s, NetEco
Battery Module Capacity: 5 kWh per module (total 10kwh)
Max. Output Power: 2.5kW per Module, 5kW per ESS
Output/Input Voltage: 370-480VDC
Cycle Life: 6000 cycles @ 25 C, 100% DOD
*Requires installation by a qualified electrician with a Wire Man’s licence, who must supply a Certificate of Compliance after installation
What’s in the box

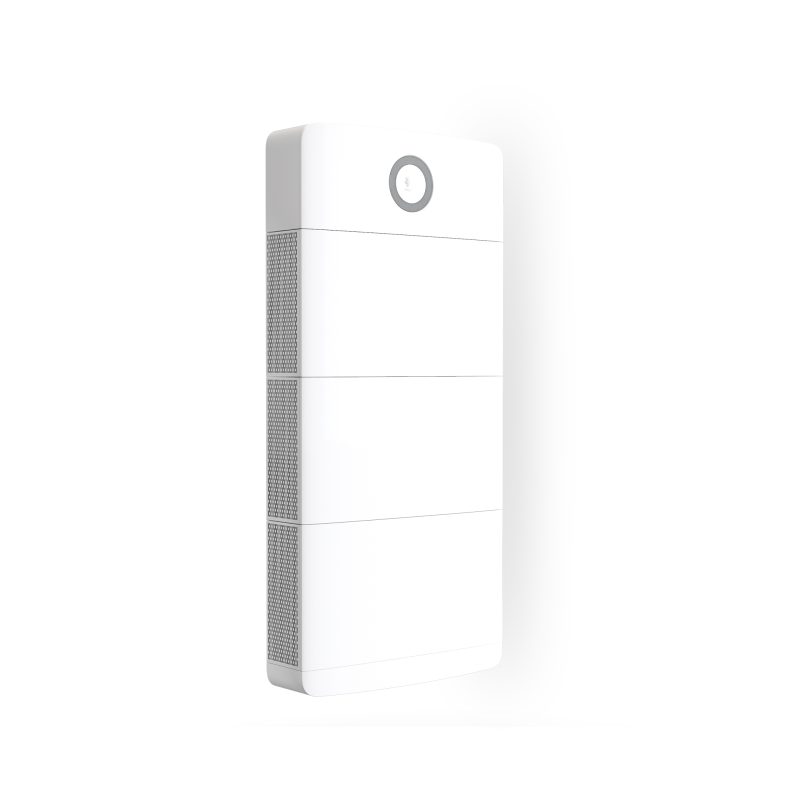

1 x Huawei 5KW Isitepower-M ESS Power Module / Inverter
3 x Huawei 5KWh Isitepower-M ESS Battery Module
1 x Base
Your installer will need to supply cabling, changeover switch, earth leakage etc. Installer should download the Huawei Fusion Solar app
