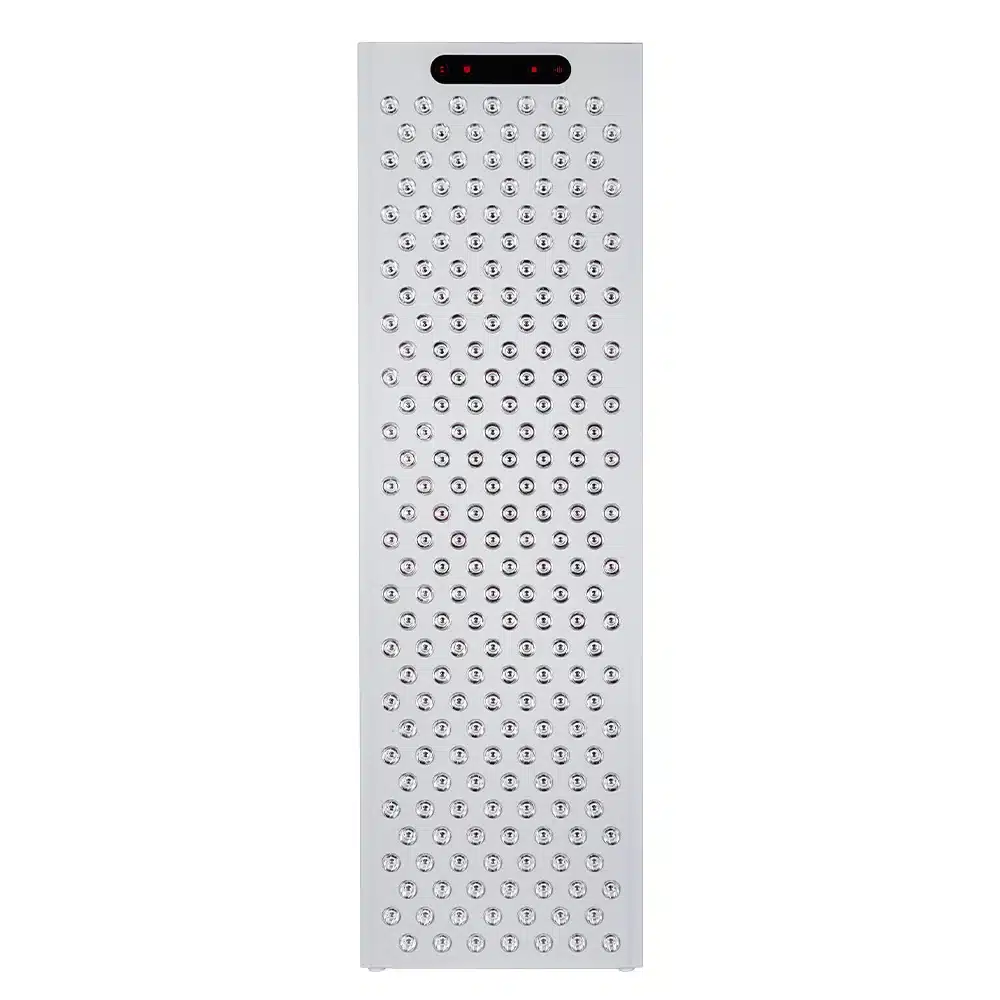

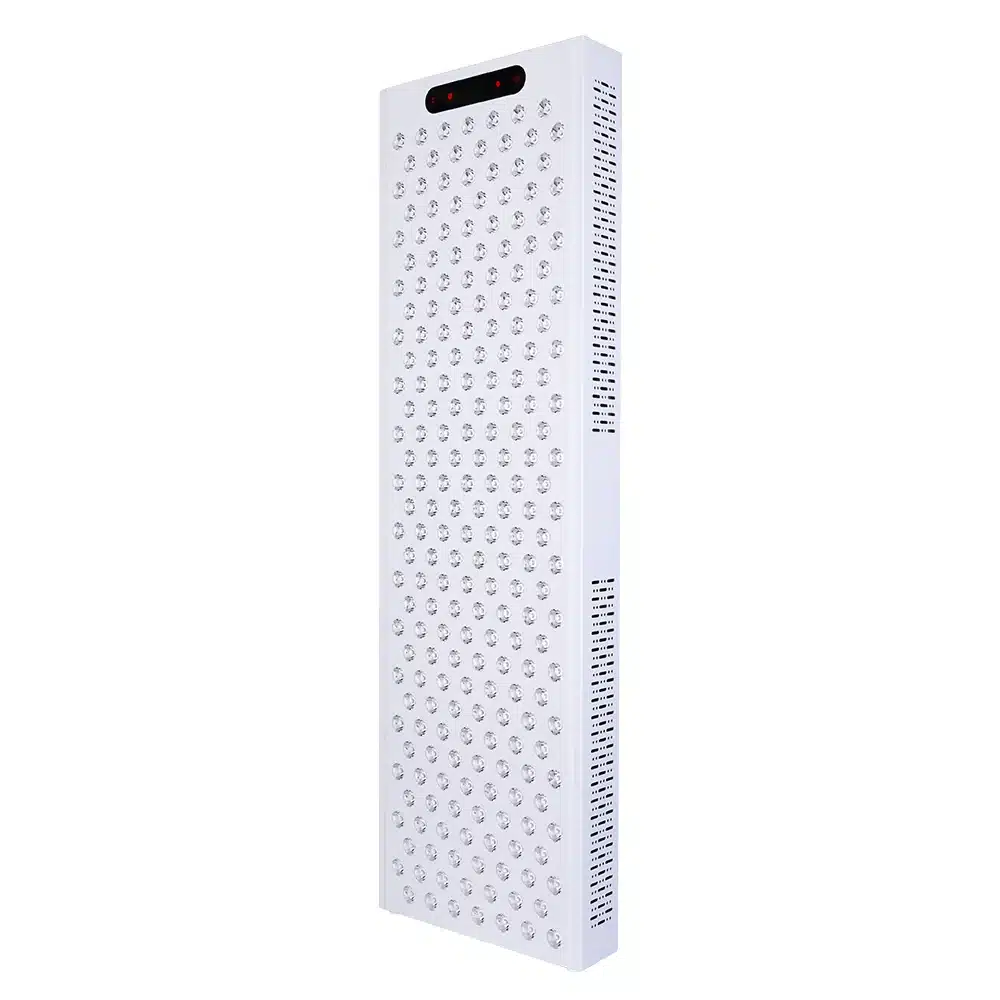

FULL-BODY RED LIGHT THERAPY
A large-format panel for broader light coverage
he tall 224-LED array provides a much broader illuminated area than a handheld device or compact panel. Use it for larger areas such as the back, legs and torso, or reposition the panel as part of a full-body light therapy routine.


DUAL WAVELENGTH TECHNOLOGY
Select red light, near-infrared light or both
The panel combines 660 nm visible red light with 850 nm near-infrared light in a 1:1 ratio, and each wavelength can run on its own. M1 runs the 660 nm red LEDs only, M2 the 850 nm near-infrared LEDs only, and M3 runs both together.
Every one of the 224 LEDs is a single-chip diode dedicated to one wavelength, rather than a dual- or triple-chip LED sharing its output. At the 1:1 ratio that makes 112 red and 112 near-infrared diodes, so in M1 or M2 half the array is working.
Near-infrared light is invisible, so some LEDs may appear unlit while functioning normally.

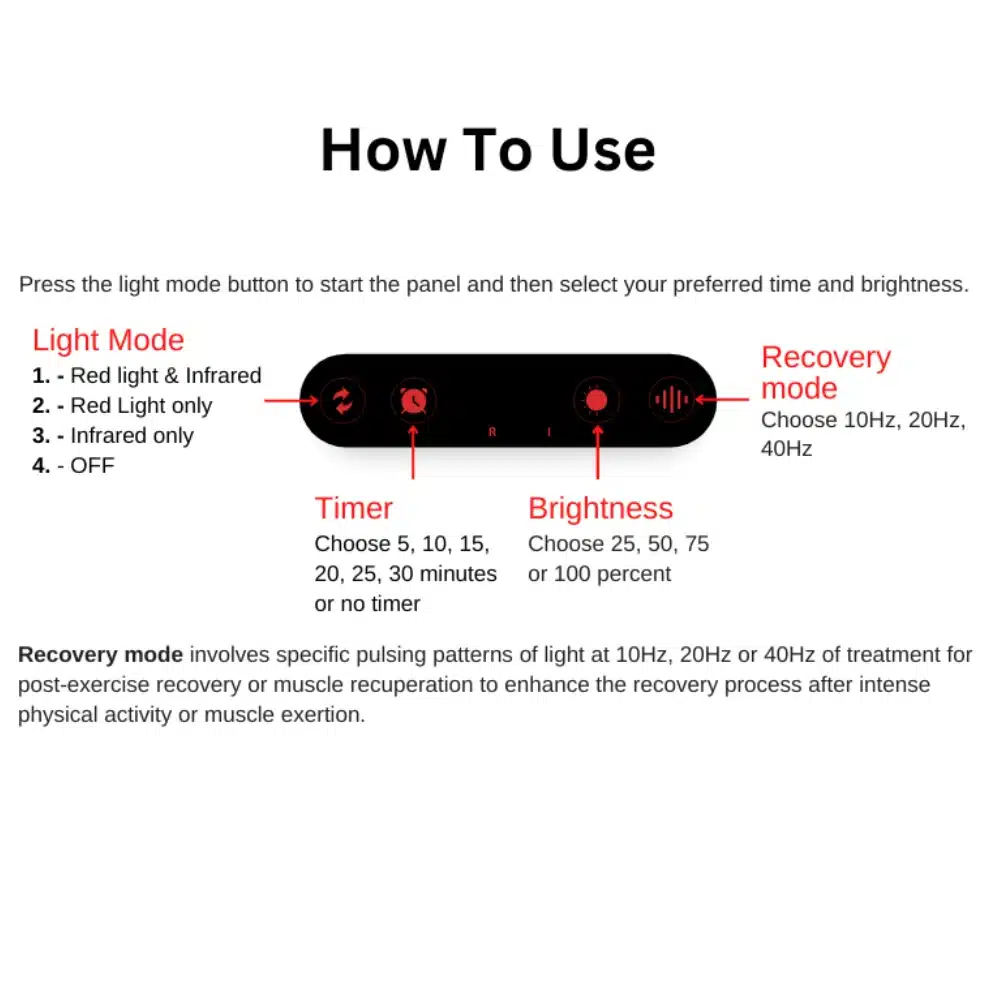

ADJUSTABLE BRIGHTNESS
Choose from four intensity settings
et the panel to 25%, 50%, 75% or 100% brightness according to your operating distance, comfort and preferred session setup. The adjustable output makes the panel easier to introduce gradually and customise for different users.


TIMER AND PULSING CONTROLS
Customise how each session operates
hoose a 20-, 25- or 30-minute timer, or use the continuous setting when manual control is preferred. Pulsing options include 10 Hz, 20 Hz and 40 Hz, together with a continuous non-pulsing mode.

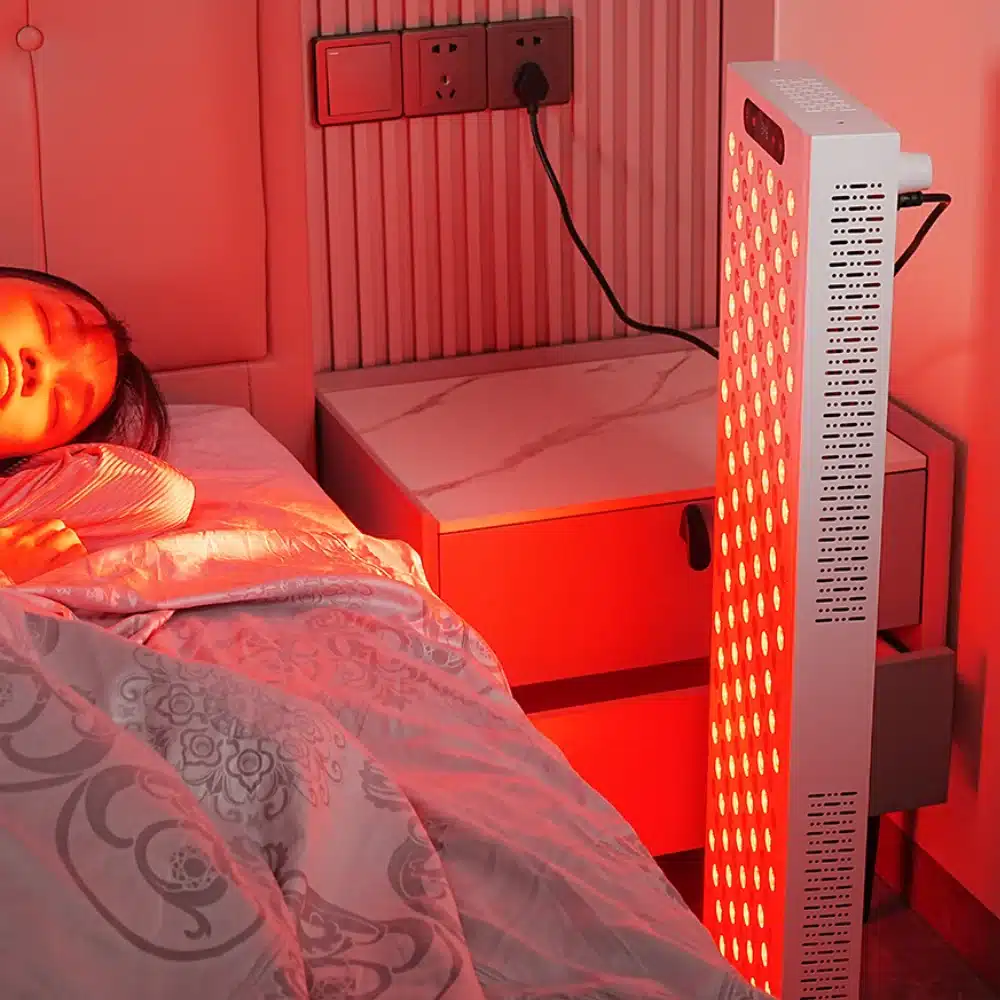

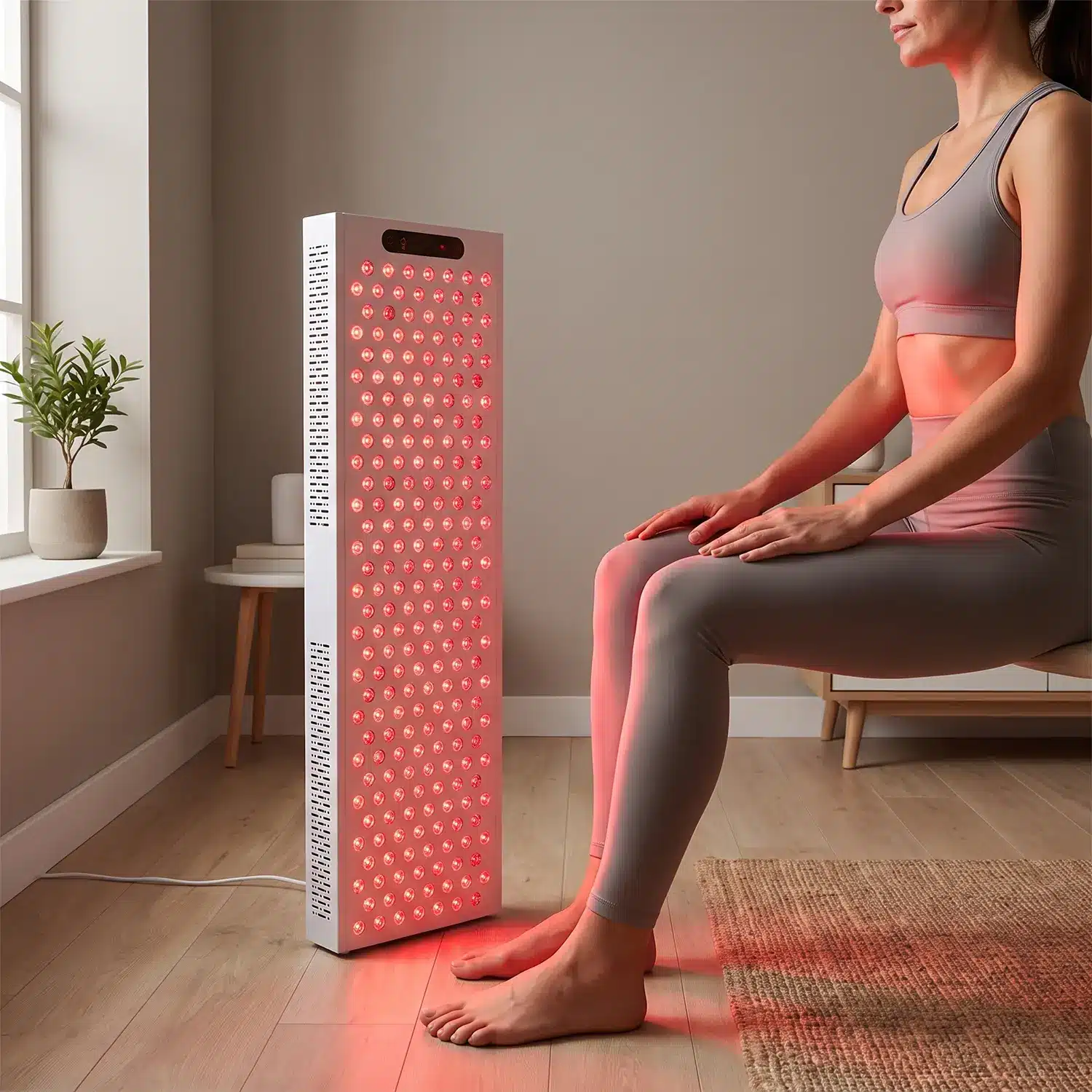

FLEXIBLE POSITIONING
Freestanding, door-hung or on the optional stand
The panel stands upright on its own base feet or hangs from a door. The door-hanging kit, pulley cables and mounting hardware come in the box, so the 8 kg panel can go up the day it arrives.
The movable floor stand is sold separately. It earns its place if you want to change the panel’s height, orientation and angle between sessions without re-hanging it.

NeuroActive 1200W specifications
| Irradiance at 15 cm | 148 mW/cm² |
| Irradiance at 20 cm | 110 mW/cm² |
| LED beam angle | 30° |
| LED type | Single-chip, one wavelength per LED: 112 × 660 nm, 112 × 850 nm |
| Brightness | 25%, 50%, 75%, 100% |
| EMF | Low, tested by the manufacturer with a professional EMF meter; no measured figure published |
| Mounting | Freestanding on its base feet, or door-hung with the included kit |
| In the box | Panel, door-hanging kit with pulley cables and mounting hardware |
Irradiance figures are the manufacturer’s own measurements. The brightness setting and meter used for the readings were not stated.
Questions we are asked about the NeuroActive 1200W
The manufacturer measures 148 mW/cm² at 15 cm and 110 mW/cm² at 20 cm. Irradiance falls quickly with distance: moving back from 15 cm to 20 cm lowers it by about a quarter (148 to 110 is a 26% drop).
The four brightness settings (25%, 50%, 75% and 100%) let you turn it down further if a session feels too intense. The manufacturer has not stated which brightness setting the readings were taken at.
Yes. M1 runs the 660 nm red LEDs only, M2 runs the 850 nm near-infrared LEDs only, and M3 runs both together.
Single-chip. Each of the 224 LEDs is dedicated to one wavelength, half at 660 nm and half at 850 nm, rather than a multi-chip LED that splits one lens between wavelengths. In M1 or M2 only the LEDs for that wavelength are on.
30°. A narrow lens concentrates the light into a tighter cone, which is why the panel is meant to be used close, at 15 to 20 cm, rather than from across the room.
The manufacturer tests the panel with a professional EMF meter and reports low EMF. It does not publish a measured figure, so we do not quote one, and we would not describe it as zero EMF.
Yes. The door-hanging kit, pulley cables and mounting hardware are in the box, so the 8 kg panel can be hung from a door straight away. It also stands upright on its own base feet. The movable floor stand is sold separately.

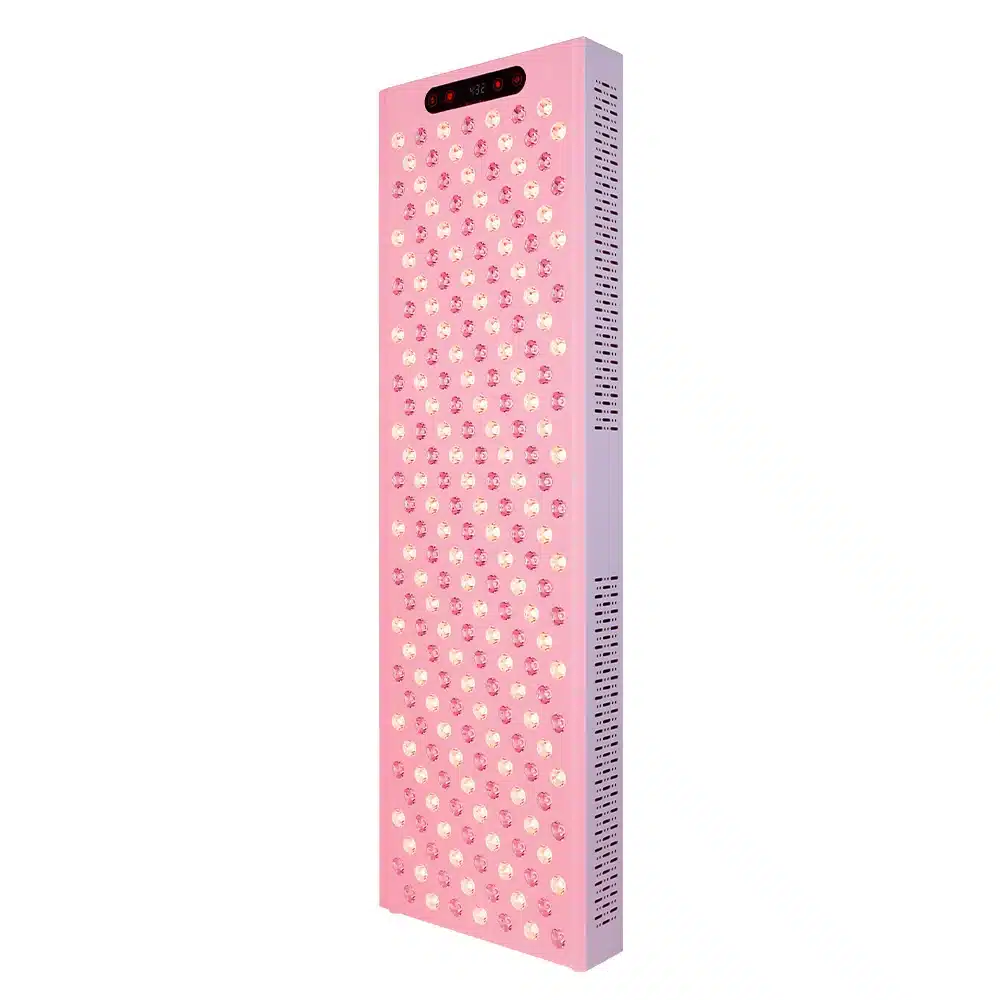

Near-infrared light at 850 nm is largely invisible, so the near-infrared LEDs look dim or off while working normally. In M2 the panel can look almost dark even though it is running.
The panel carries a 3-year warranty. If something goes wrong, contact EcoHub: we log the claim with the South African supplier and follow it up until it is resolved.
