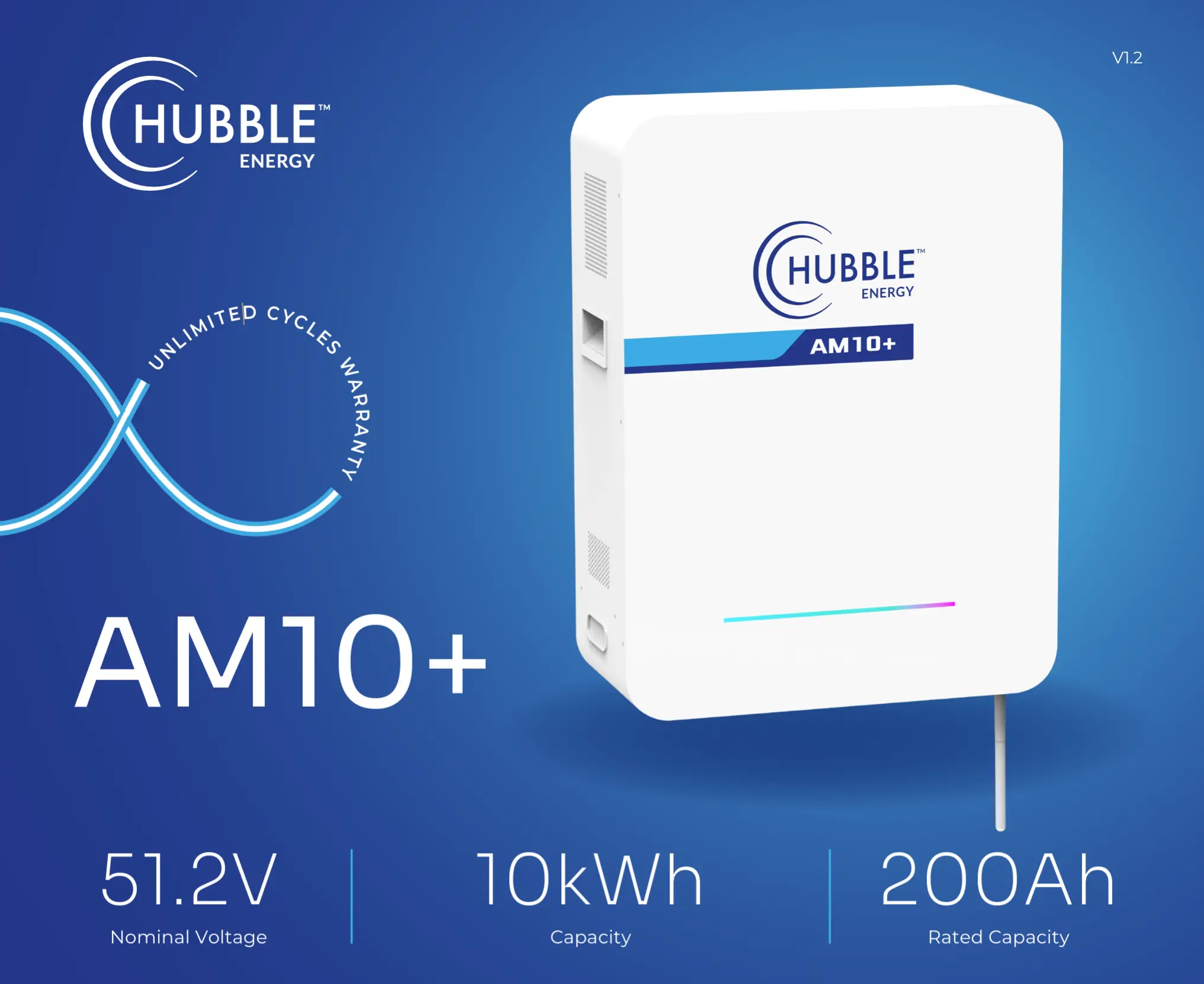

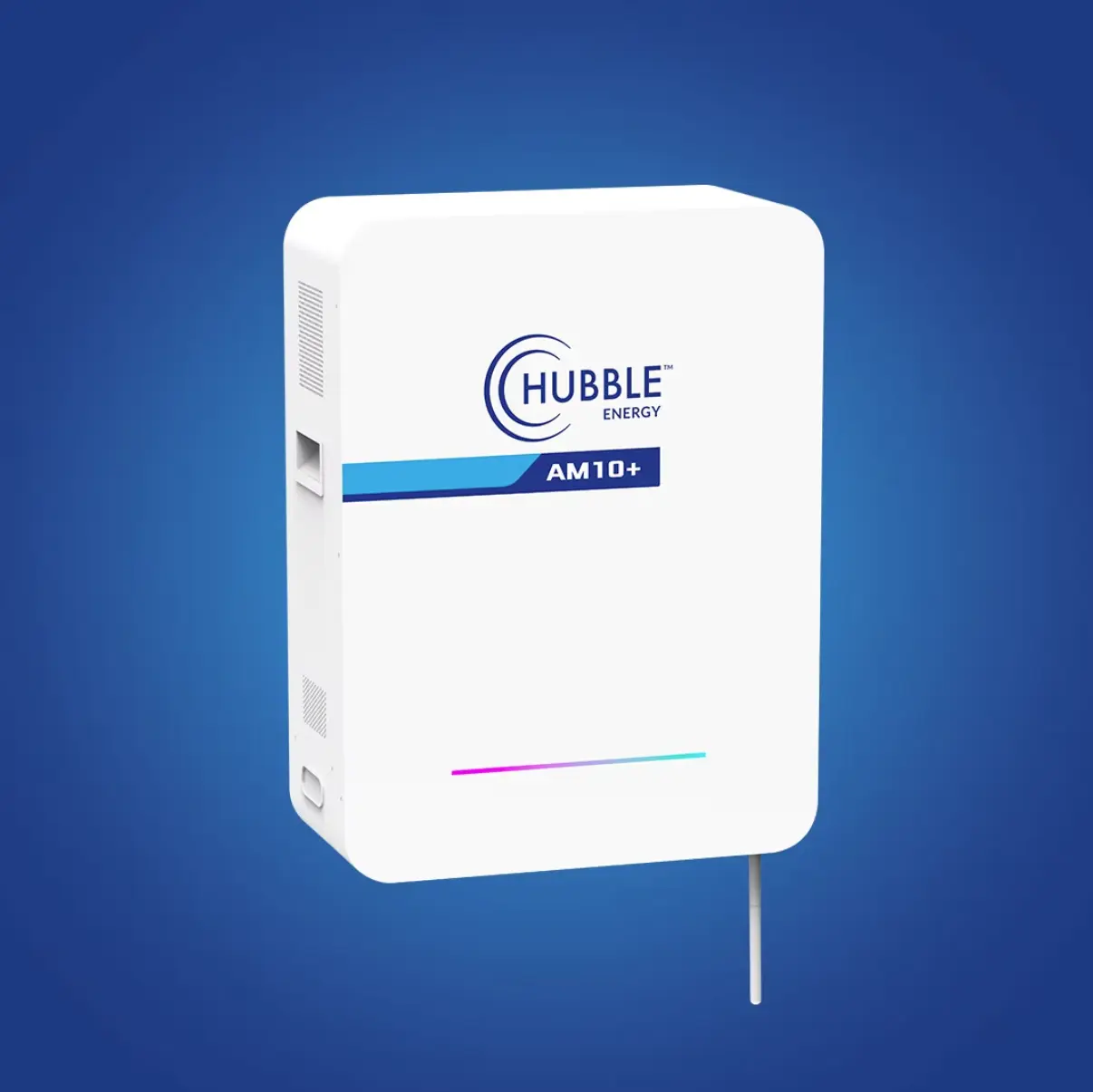

Hubble AM10+ 10kWh 51.2V LiFePO4 Lithium Battery

Hubble AM10+ 10kWh Lithium Battery

The Hubble AM10+ 10kWh 51.2V LiFePO4 Lithium Battery is a high-performance energy storage solution designed for residential solar, backup power and larger hybrid inverter systems.

With 10kWh nominal energy, 200Ah rated capacity and a 51.2V nominal voltage, the AM10+ provides substantial battery storage in a single wall-mounted unit. It features prismatic LiFePO4 cells, a 1C rating, up to 200A maximum discharge current and an advanced integrated Battery Management System (BMS).

The latest Hubble AM10+ also includes integrated Hubble Cloudlink monitoring, providing 24/7 remote battery monitoring without requiring a separate Cloudlink monitoring device.

10kWh Capacity in a Single Battery

The Hubble AM10+ provides 10kWh of nominal energy and 200Ah capacity at 51.2V, making it an excellent choice for homes and businesses requiring significant battery storage without installing multiple smaller battery modules.

For solar installations, this capacity allows excess solar energy generated during the day to be stored for use in the evening, overnight or during a power outage.

Additional compatible batteries can also be installed where greater storage capacity is required, allowing the system to be expanded as energy requirements increase.

High-Performance 1C Lithium Battery

The Hubble AM10+ is a 1C high-performance lithium battery capable of supplying up to 200A maximum discharge current.

This makes the AM10+ particularly suitable for larger hybrid and off-grid inverter systems where both battery capacity and the ability to supply higher electrical loads are important.

The battery supports a maximum charge current of 115A. Hubble recommends a charge current of approximately 60A to help prolong battery life.

Integrated Hubble Cloudlink Monitoring

A major feature of the AM10+ is the integrated Hubble Cloudlink, providing 24/7 remote monitoring of the battery system.

Cloudlink allows battery and system information to be monitored remotely and can assist installers and Hubble technical support with system diagnostics and battery management.

Because Cloudlink is integrated into the AM10+, there is no need to purchase a separate external Cloudlink monitoring device for a new AM10+ installation.

LiFePO4 Prismatic Battery Cells

The Hubble AM10+ uses 16 prismatic LiFePO4 (Lithium Iron Phosphate) cells.

LiFePO4 chemistry is widely used for modern solar energy storage due to its excellent cycle life, thermal stability, safety characteristics and suitability for frequent charging and discharging.

Advanced Battery Management System

An integrated Battery Management System (BMS) continuously manages and protects the Hubble AM10+.

Built-in battery protection includes:

• Over-charge protection
• Over-discharge protection
• Over-current protection
• Short-circuit protection
• Over-temperature protection
• Under-temperature protection
• Cell balancing
• Intelligent charging-current limiting

The AM10+ also includes an informative RGB LED display strip providing an easy visual indication of battery status.

Inverter Communication and Compatibility

The Hubble AM10+ is designed to communicate with compatible inverter and charger systems using CAN, RS485 and RS232 communication.

Hubble states that the AM10+ is compatible with most suitable inverters and chargers, while CAN Bus communication allows integration with leading inverter brands.

Inverter compatibility, communication cables and the correct inverter settings should always be confirmed for the specific inverter model being installed.

If you are unsure whether the Hubble AM10+ is compatible with your inverter, contact EcoHub with the make and model of your inverter and details of your existing solar system.

Expandable Battery Storage

The Hubble AM10+ is designed as a scalable battery storage system. Additional compatible Hubble batteries can be installed where more than 10kWh of energy storage is required.

This makes the AM10+ suitable for installations ranging from residential solar and backup systems to larger energy-storage applications where additional battery capacity may be required in future.

The AM10+ is also compatible with existing Hubble AM-10 batteries when the system is correctly configured with the required Cloudlink communications.

10-Year Unlimited-Cycle Warranty

The Hubble AM10+ is backed by a 10-year unlimited-cycle warranty, subject to Hubble Energy’s warranty terms and conditions.

Combined with LiFePO4 cell chemistry, intelligent battery management and integrated remote monitoring, the AM10+ is designed for installations where the battery may be charged and discharged regularly as part of a solar or backup energy system.

Hubble AM10+ Key Features

• 10kWh nominal energy
• 200Ah rated capacity
• 51.2V nominal voltage
• Prismatic LiFePO4 battery cells
• 1C high-performance lithium battery
• 200A maximum discharge current
• 115A maximum charge current
• 60A recommended charge current
• Integrated Hubble Cloudlink
• 24/7 remote battery monitoring
• Advanced integrated Battery Management System
• CAN / RS485 / RS232 communication
• RGB LED battery status display
• Low self-discharge
• High cycle and service life
• Wall-mounted installation
• Compatible with most suitable inverters and chargers
• Scalable battery storage system
• Compatible with Hubble AM-10 when correctly configured
• 10-year unlimited-cycle warranty – terms and conditions apply

Hubble AM10+ Technical Specifications

Is the Hubble AM10+ a Good Battery for Home Solar?

The Hubble AM10+ is particularly well suited to larger residential solar and backup power systems where approximately 10kWh of battery storage is required in a single unit.

Its combination of 10kWh storage capacity, 1C performance, 200A maximum discharge capability, LiFePO4 chemistry, inverter communications and integrated Cloudlink monitoring makes it a strong option for customers building a capable home energy storage system.

For homes requiring longer overnight autonomy or additional backup capacity, the battery system can be expanded with additional compatible batteries.

Frequently Asked Questions

How much capacity does the Hubble AM10+ have?

The Hubble AM10+ provides 10kWh of nominal energy, with a rated capacity of 200Ah at 51.2V.

Does the Hubble AM10+ include Cloudlink?

Yes. The AM10+ includes integrated Hubble Cloudlink monitoring, providing 24/7 remote battery monitoring without requiring a separate Cloudlink device for a new AM10+ installation.

What is the maximum discharge current of the Hubble AM10+?

The Hubble AM10+ has a maximum discharge current of 200A.

What is the maximum charging current?

The maximum specified charging current is 115A. Hubble recommends approximately 60A charging current to help prolong battery life.

What battery chemistry does the AM10+ use?

The Hubble AM10+ uses LiFePO4 (Lithium Iron Phosphate) prismatic cells, with 16 cells per battery.

Can the Hubble AM10+ communicate with an inverter?

Yes. The AM10+ supports CAN, RS485 and RS232 communication and is designed to communicate with compatible leading inverter brands.

Can I add more Hubble AM10+ batteries later?

Yes. The AM10+ is designed as a scalable battery storage system, allowing additional compatible batteries to be installed where greater energy storage capacity is required.

What warranty does the Hubble AM10+ have?

The Hubble AM10+ carries a 10-year unlimited-cycle warranty, subject to Hubble Energy’s warranty terms and conditions.

Hubble AM10+ Brochure

For full manufacturer specifications and additional technical information, download the official Hubble Energy AM10+ brochure:

Download the Hubble AM10+ 10kWh Battery Brochure

Product specifications may change as part of Hubble Energy’s ongoing product development. Please contact EcoHub if you require confirmation of compatibility or specifications for a particular installation.
