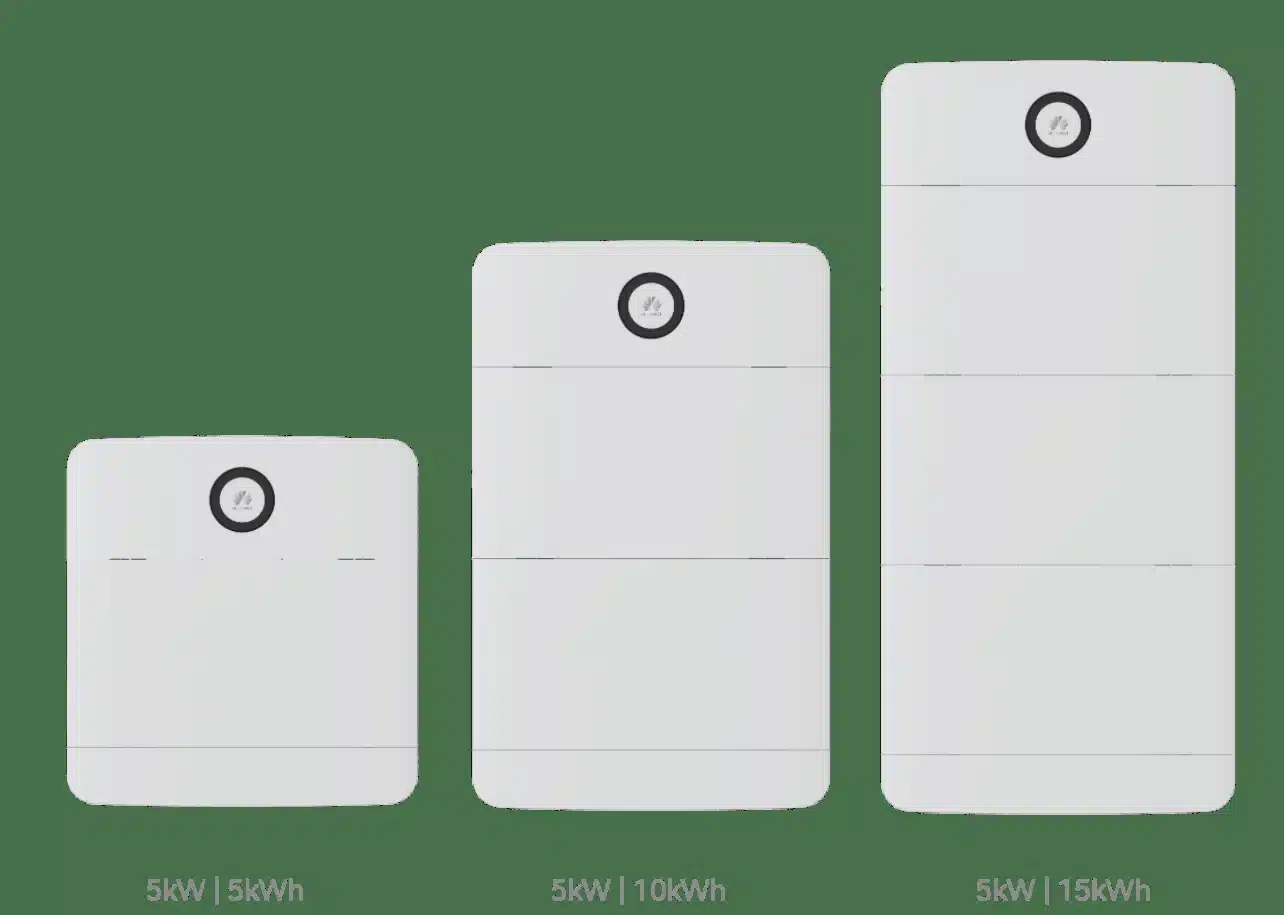

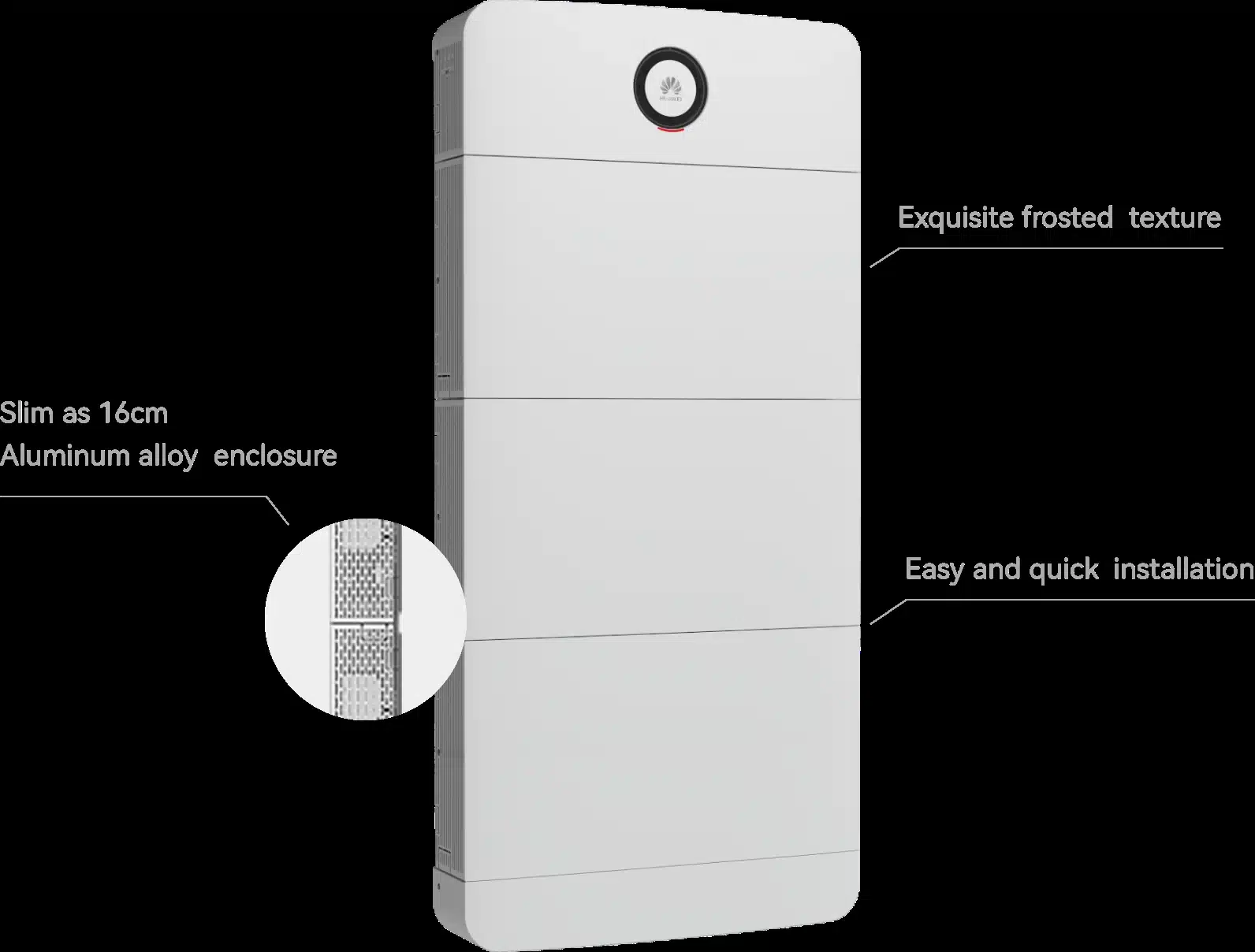

The Huawei Power-M is a stylish, all in one, modular backup power solution. Being a hybrid system, it allows you to use the system with or without solar panels. The modular system allows you to easily add addtional batteries. You can start off with one battery and stack up to three on a single tower. This setup would then give you battery capacity of 15kwh. Further upgrade paths allow you to add a 2nd inverter in parellel or an addtional tower of battery modules.

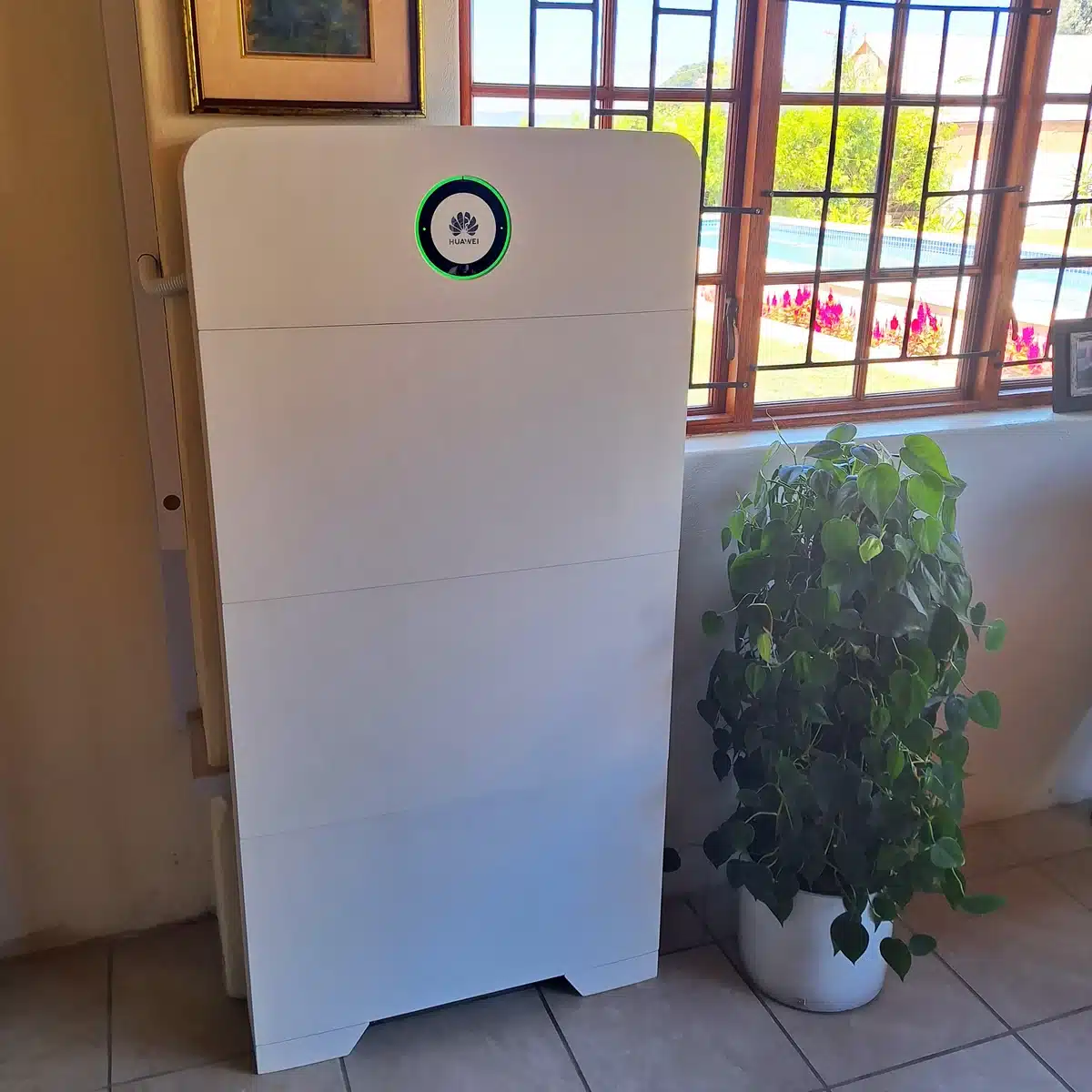

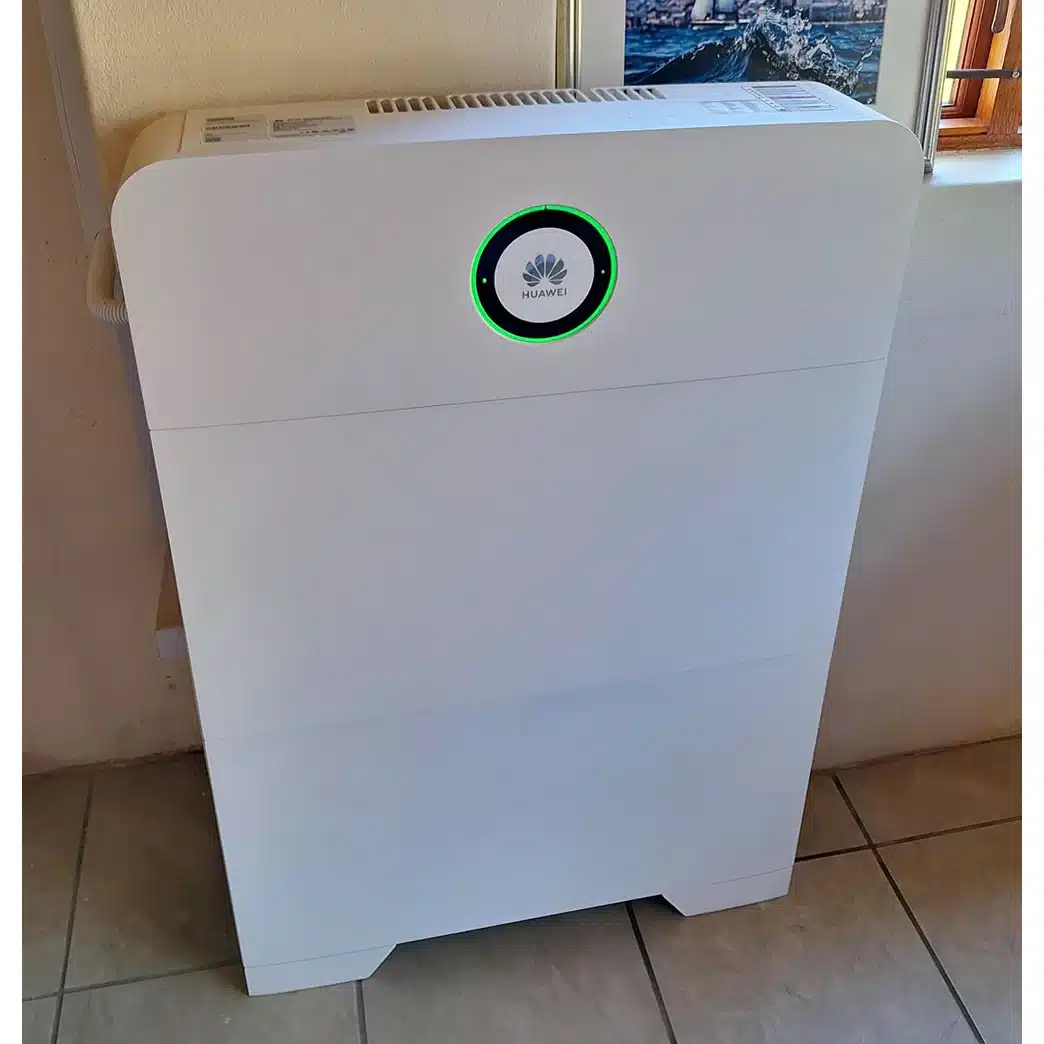

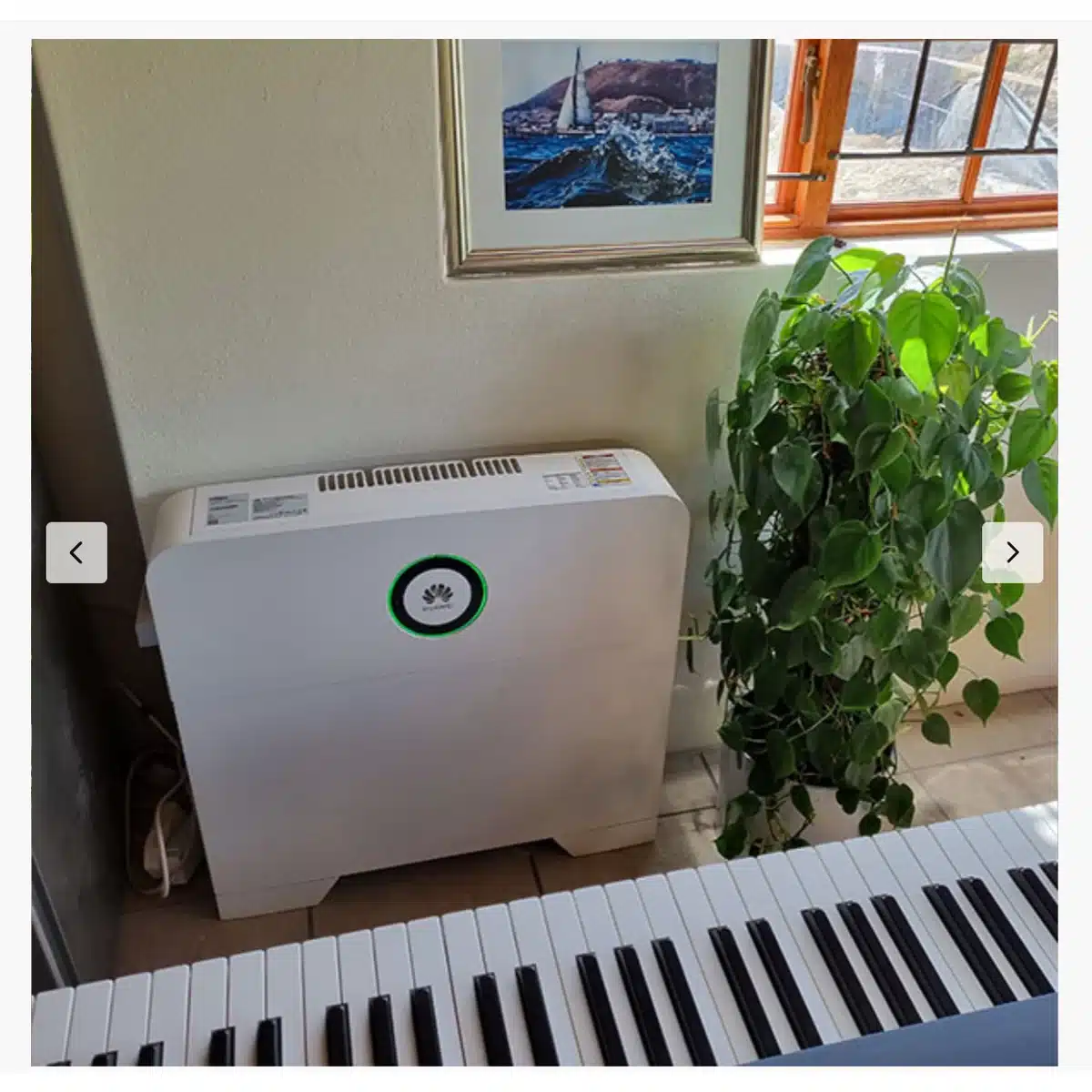

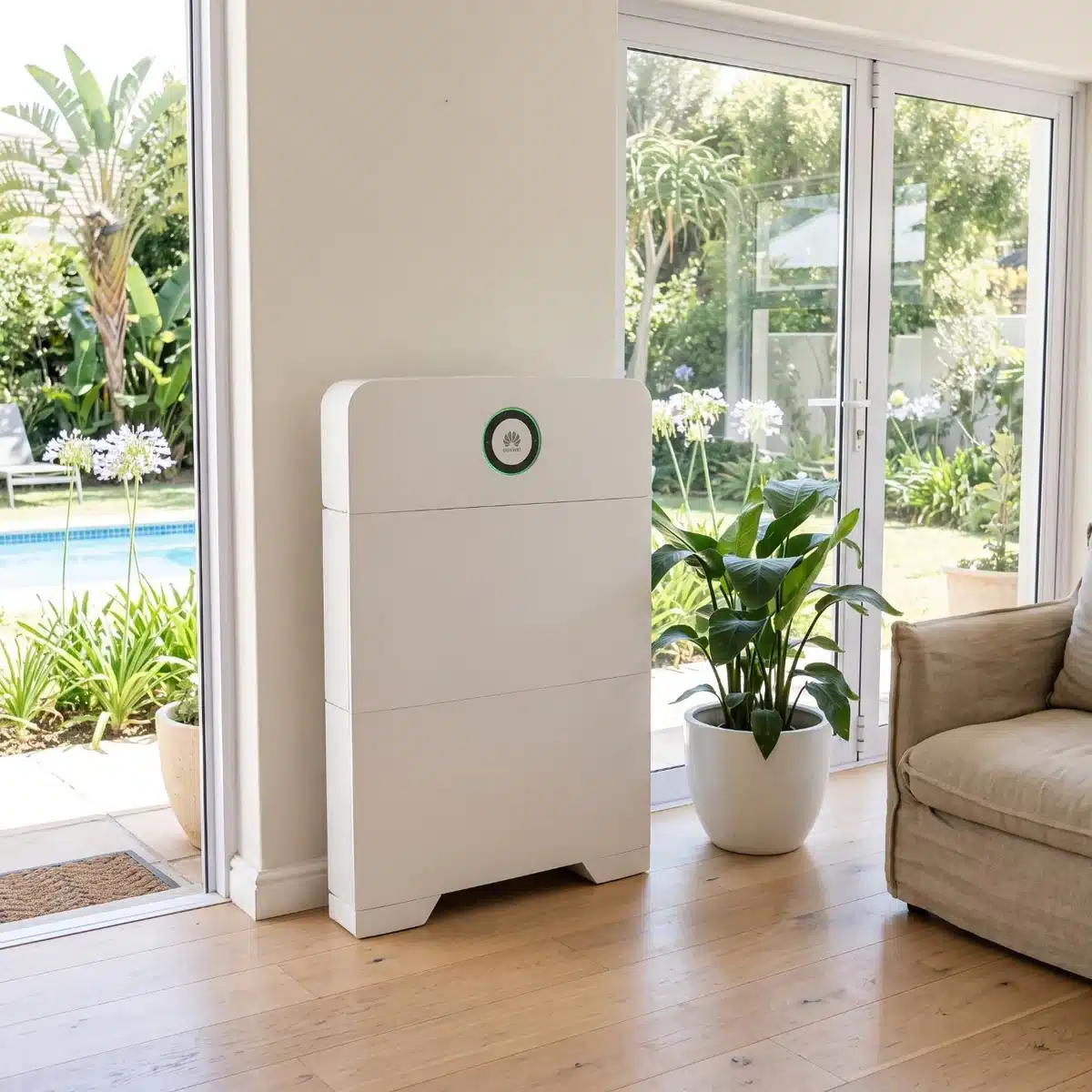

“I installed the Huawei Power-M at my house in 2022 when we had regular stage 6 load shedding. Having started with one battery, I later upgraded to 2 batteries, then added solar panels, and eventually a 3rd battery. With the current setup, which includes 8 solar panels my house is virtually off grid. The system is installed in my dining / music room, it’s virtually silent and looks great! ” (photos above are from my house) Dylan, EcoHub Director.
DOWNLOAD BROCHURE FUSION SOLAR APP GUIDE
Huawei Power-M Technical Specifications
AC Output
- Rated Power Output: 6 kVA / 5 kW
- Output Voltage: 230 VAC/50Hz
- Max. Output Current: 25.8A
- Max. Bypass Input Power: 6kW
AC Input
- AC Input Voltage: 230VAC/50Hz
- Surge Protection: 3 kVA/5 kVA, 8/20 s
- Max. Input Current: 30 A
PV Input
- Start-up Voltage: 100VDC
- MPPT Voltage: 90-420VDC
- Max. Input Voltage (Voc): 435VDC
- Max. Input Current (Isc): 2 x 15 A
- Recommended PV Power: 5000 Wp
- No. PV Strings/MPPT Routes: 2/1
- Optimizer Compatibility: DC Mbus Compatible
- DC Surge Protection: 10 kA, 8/20 s, criterion C
- Max. Input Current per Strings: 15 A
Huawei Power-M Features
- Communication: Wi-Fi

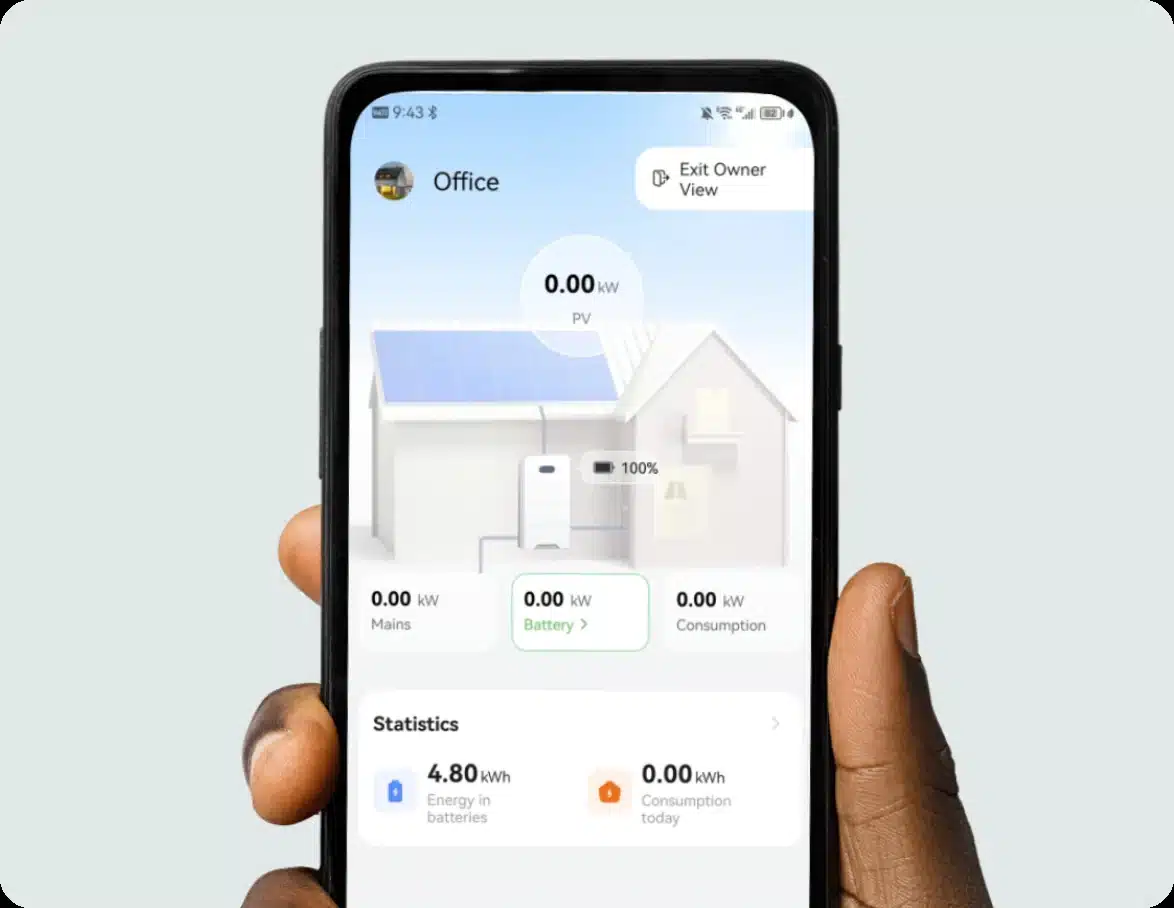

- Monitoring: FusionSolar app
- Display: LED’s, NetEco
- Battery Module Capacity: 5 kWh per module
- Max. Output Power: 0.5C rating – 2.5kW per Module, 5kW per ESS (full inverter capacity when the system is used with two or more batteries)
- Output/Input Voltage: 370-480VDC
- Cycle Life: 6000 cycles @ 25 C, 100% DOD
What’s in the box
1 x Huawei 5KW Isitepower-M ESS Power Module / Inverter
1 x Huawei 5KWh Isitepower-M ESS Battery Module
1 x Floor Mount Base
Installation: Experienced Installers
We can refer you to experienced installers covering most areas in South Africa. These installers know the Huawei Power-M well and have been installing them since they were first launced in 2022.
Installation: Your own installer
Your installer will need to supply cabling, changeover switch, earth leakage etc. Installer should download the Huawei Fusion Solar app and connect the system to your home Wi-Fi network.
