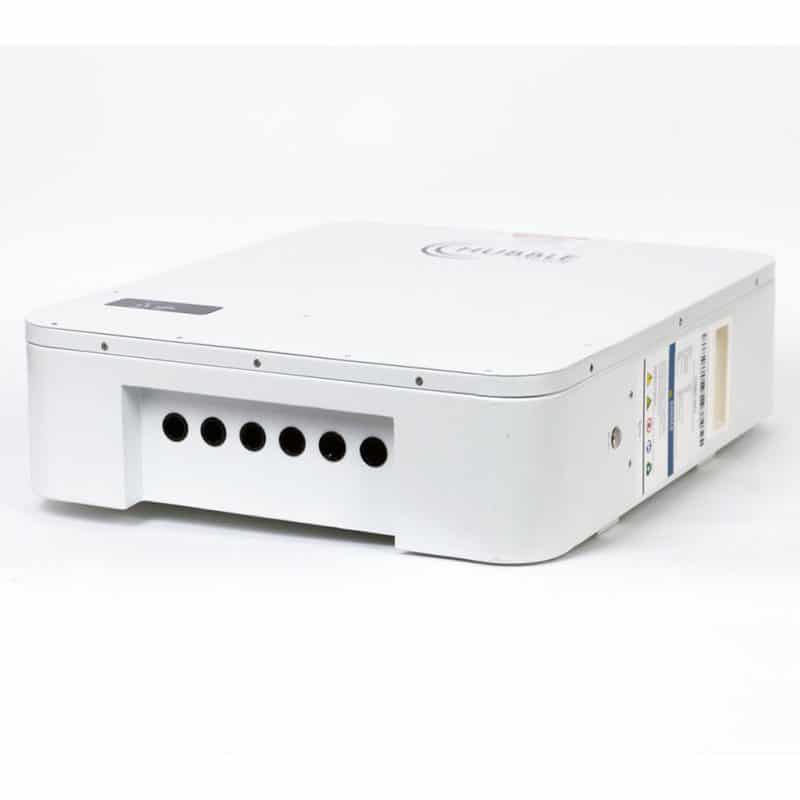

Hubble AM 5 Lithium Battery Specifications
Specification: 51.2V 5.12KWh
Rating: 1C
Parallel: up to 8 packs with full communications
Extras: Battery Link, rawl bolts and wall bracket
​​CAN Bus: Yes
Hubble Cloudlink Ready: Yes
Download Hubble AM5 Brochure Download Hubble AM5 Warranty
Hubble AM5 FeaturesÂ
- Low self discharge
- High cycle and service Life
- 1C High performance lithium battery
- Easy wall mount or shelf rack installation
- Excellent high temperature performance
- Advanced BMS with current limiting function
- Compatible with most inverters and chargers
- High energy density and conversion efficiency
- Complete with integrated Battery Management System
- Hubble Cloudlink integration ready for cloud monitoring
- Heavy duty side handles for easy handling and mounting on the wall
- Built in protection for over-charge, over-discharge & over-temperature
- CAN Bus, fully integrates and communicates with leading Inverter brands
Technical Specifications
Rated Capacity (5HR): 100Ah
Nominal Voltage: 51.2V
Design Capacity: 5.12KWH
Equalized Charge Voltage: 55.2V
Max. Continuous Charging Current: 100A
Max. Continuous Discharging Current: 100A
C Rating: 1C
Weight: Approx. 51kg
Monitoring: Cloudlink
Parallel: Parrallel connection up to 8 packs with full communications
Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm
Ports: CAN-bus, Battery Link Ports
Cells: Prismatic LiFePO4
Design Life: ± 15 Years
Cycle Life: UNLIMITED CYCLES WITHIN THE HUBBLE LITHIUM 10 YEAR WARRANTY. (Ts & Cs Apply)
Certification: CE IEC UN38.3
Outer Package Material: White Bake Lacquer Steel Case
Operating Temperature
Charging: -10°C to +50 °C
Humidity: 15% to 75%
Storage: 10°C to +50°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
