DAIKIN SKY AIR
A light-commercial wall unit for large spaces
Sky Air is Daikin’s light-commercial range, built for offices, shops, restaurants and large open-plan homes where a residential wall split runs out of capacity.
This system pairs the FAA100B wall-mounted indoor unit with the AZAS100MV1 Active Series outdoor unit and a BRC1H52 wired controller. Daikin rates the pair at 9.5 kW of cooling (about 32 400 Btu/h) and 10.8 kW of heating at its nominal rating.
It runs on R32 refrigerant and a single-phase 220–240 V supply.
Built for the spaces a residential wall split cannot carry.
EFFICIENCY AND INSTALLATION

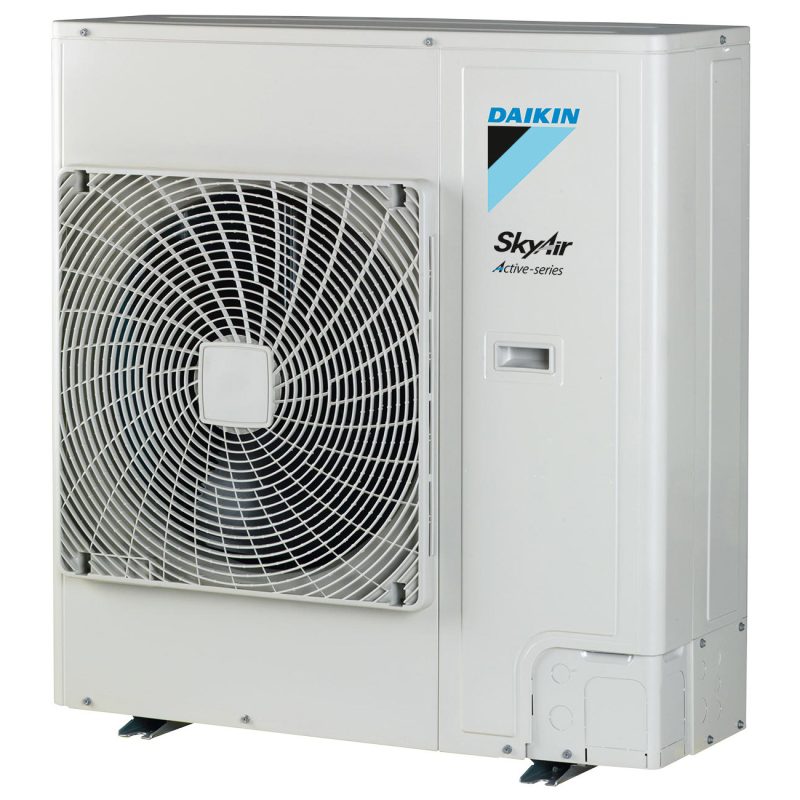

Active Series outdoor unit, 30 m of piping
Daikin rates the FAA100B with AZAS100MV1 at a seasonal efficiency of 5.25 (SEER, A) in cooling and 3.81 (SCOP, A) in heating.
The outdoor unit allows up to 30 m of piping to the indoor unit, with up to 30 m of height between them and no extra refrigerant needed across that length, which gives the installer room to place it away from the space being cooled.

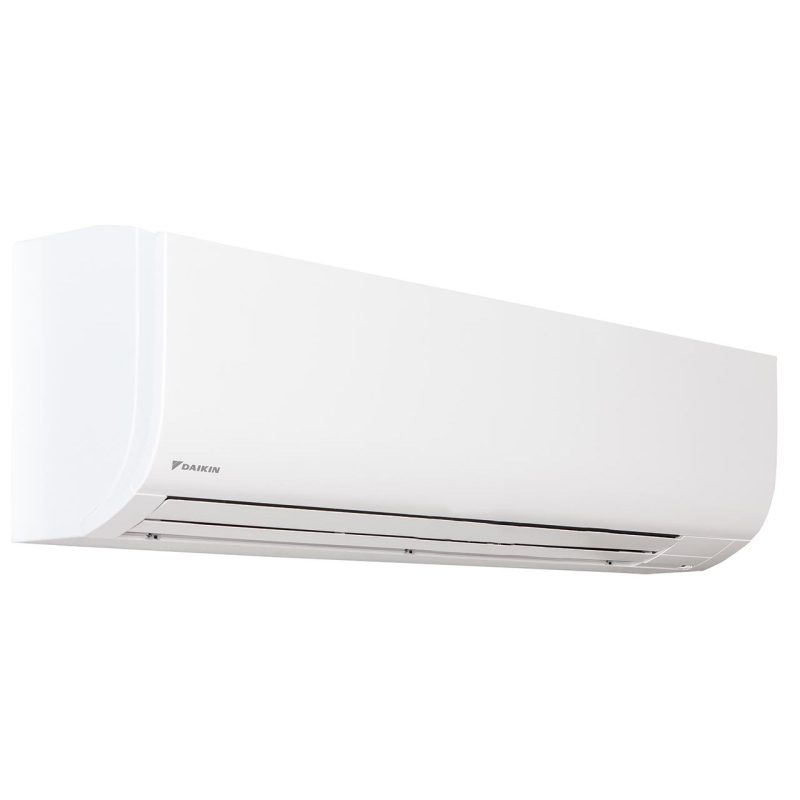

The indoor unit is flat-fronted and easy to clean, with piping that can leave from the bottom, left or right, so it suits new buildings and refurbishments alike.
COMFORT
Five discharge angles and a wired controller
The flaps can be set to five discharge angles from the controller, with vertical auto-swing to spread the air through a large space, three fan speeds plus auto, and a dry programme that lowers humidity without swinging the temperature.
Home-leave operation holds the space at a set temperature while it is empty, and auto changeover switches between heating and cooling to hold the set point.

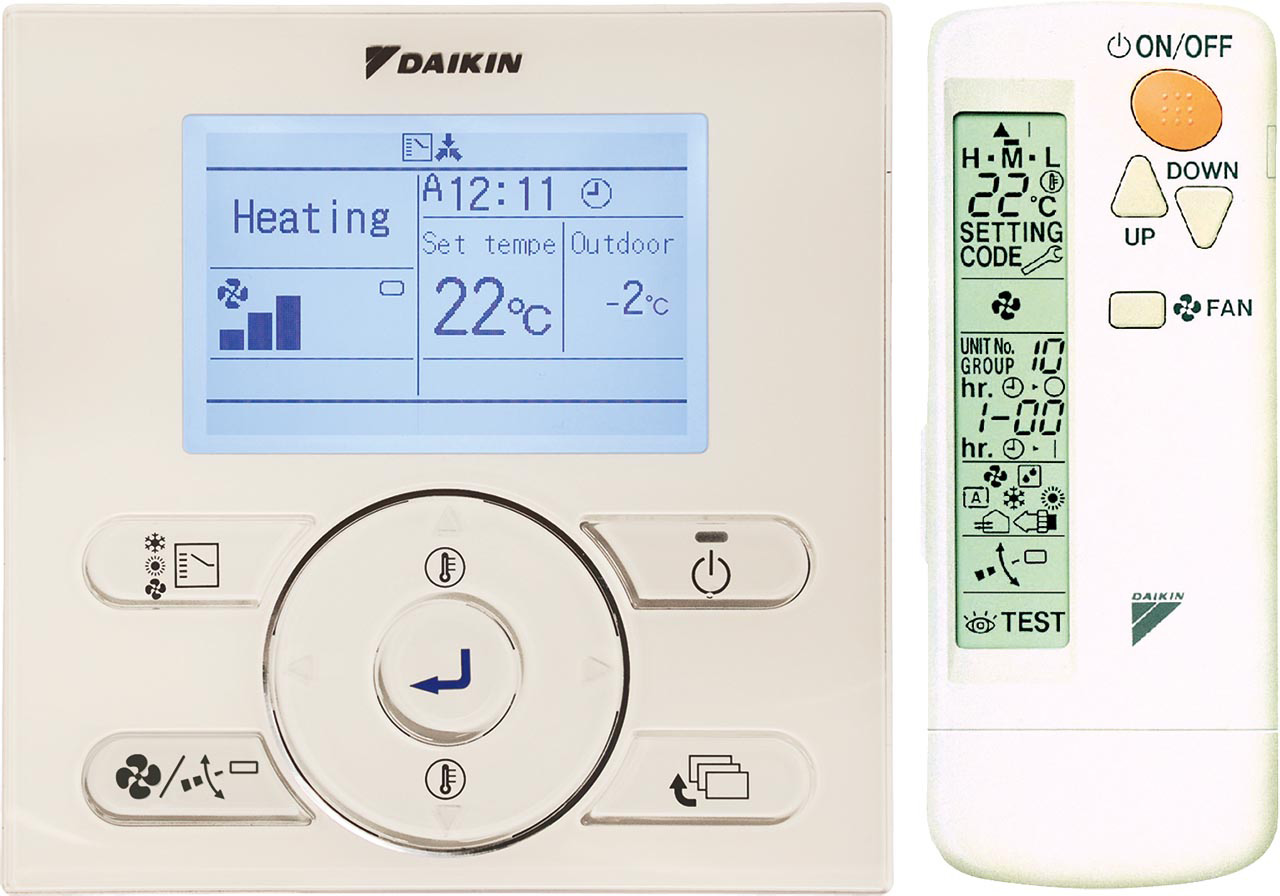

The BRC1H52 wired controller is included. Onecta app control and a weekly timer are available as options.
MADE FOR SOUTH AFRICAN POWER
Daikin South Africa stock
The system is supplied through Daikin South Africa for a 220–240 V single-phase supply, so the local Daikin warranty applies and parts come through Daikin’s South African network.
Auto-restart returns the unit to its original settings after a power failure, and self-diagnosis points a technician to the fault.
A Sky Air system has to be installed by a qualified installer. Our installers cover the major South African cities and quote separately.
Sky Air FAA100B specifications
| Indoor unit | FAA100B wall mounted |
| Outdoor unit | AZAS100MV1 (Active Series) |
| Controller | BRC1H52 wired controller included |
| Cooling capacity (nominal) | 9.5 kW (about 32 400 Btu/h) |
| Heating capacity (nominal) | 10.8 kW |
| SEER / SCOP | 5.25 (A) / 3.81 (A) |
| Indoor sound pressure | 41 / 45 / 49 dBA (low / medium / high) |
| Indoor airflow | 23 m³/min (high) |
| Indoor unit (H × W × D, weight) | 340 × 1 200 × 262 mm, 18 kg |
| Operating range (outdoor) | Cooling −5 to 46 °C; heating −15 to 15.5 °C (wet bulb) |
| Refrigerant piping | Up to 30 m, 30 m height difference, no extra charge up to 30 m |
| Power supply | 1~, 50 Hz, 220–240 V; R32 |
Figures from Daikin’s published data for the FAA100B and AZAS100MV1.
How it sits against the alternatives
For a large residential space, the Perfera 24 000 Btu and Sensira 24 000 Btu are the largest residential wall splits, at 7.1 kW. The Sky Air adds about a third more cooling, a wired controller and light-commercial piping lengths.
Where a ceiling installation is possible, the Daikin round flow cassette spreads air in all directions from the centre of the room.
Questions we are asked about the Sky Air FAA100B
Daikin rates the FAA100B with AZAS100MV1 at 9.5 kW of cooling at its nominal rating, about 32 400 Btu/h, and 10.8 kW of heating. As an inverter system it runs below that most of the time once the space is at temperature.
Large open-plan areas, offices, shops and restaurants that a residential wall split cannot carry. The right size depends on glazing, occupancy and equipment in the space, so send us the dimensions and use and we will check it.
No. The AZAS100MV1 runs on a single-phase 220–240 V supply.
No. Our installers cover the major South African cities and quote separately.
This is genuine Daikin South Africa stock, so Daikin South Africa’s local warranty applies. If anything goes wrong, you deal with us: we log the claim with Daikin South Africa and follow it up on your behalf.
